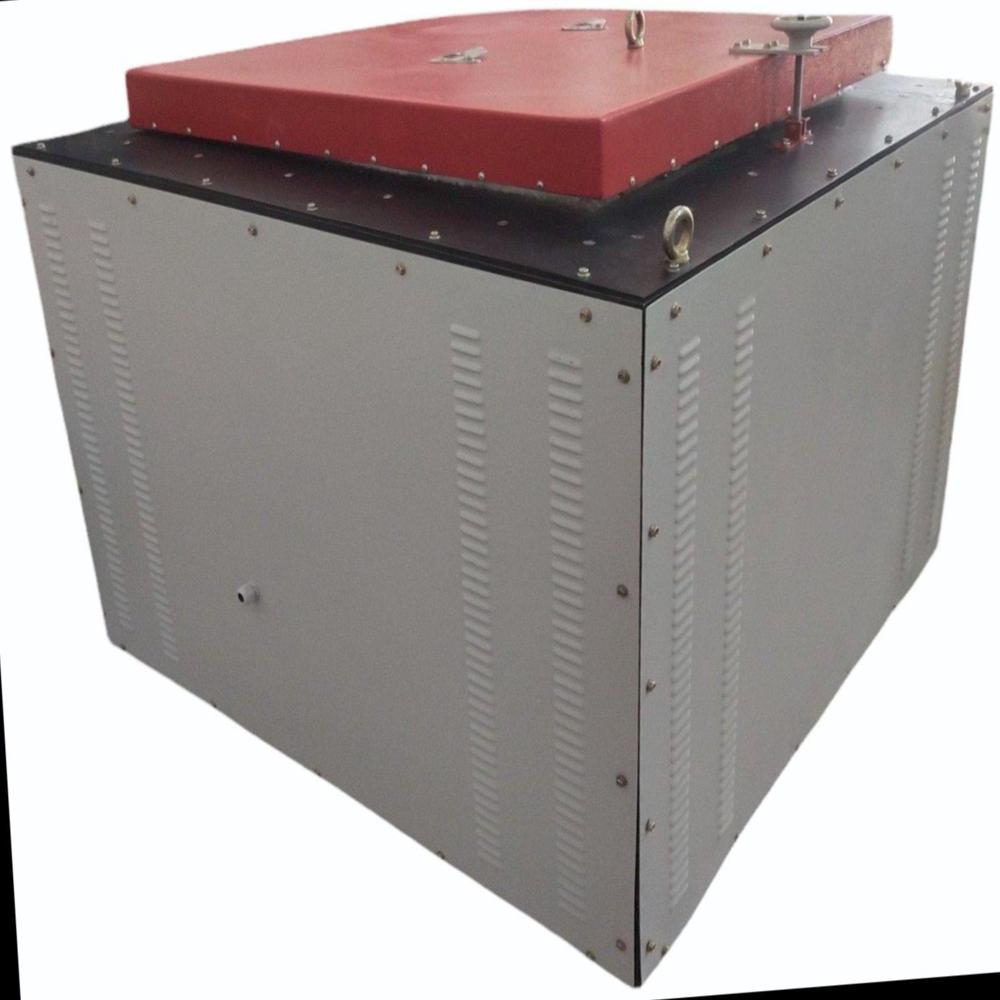

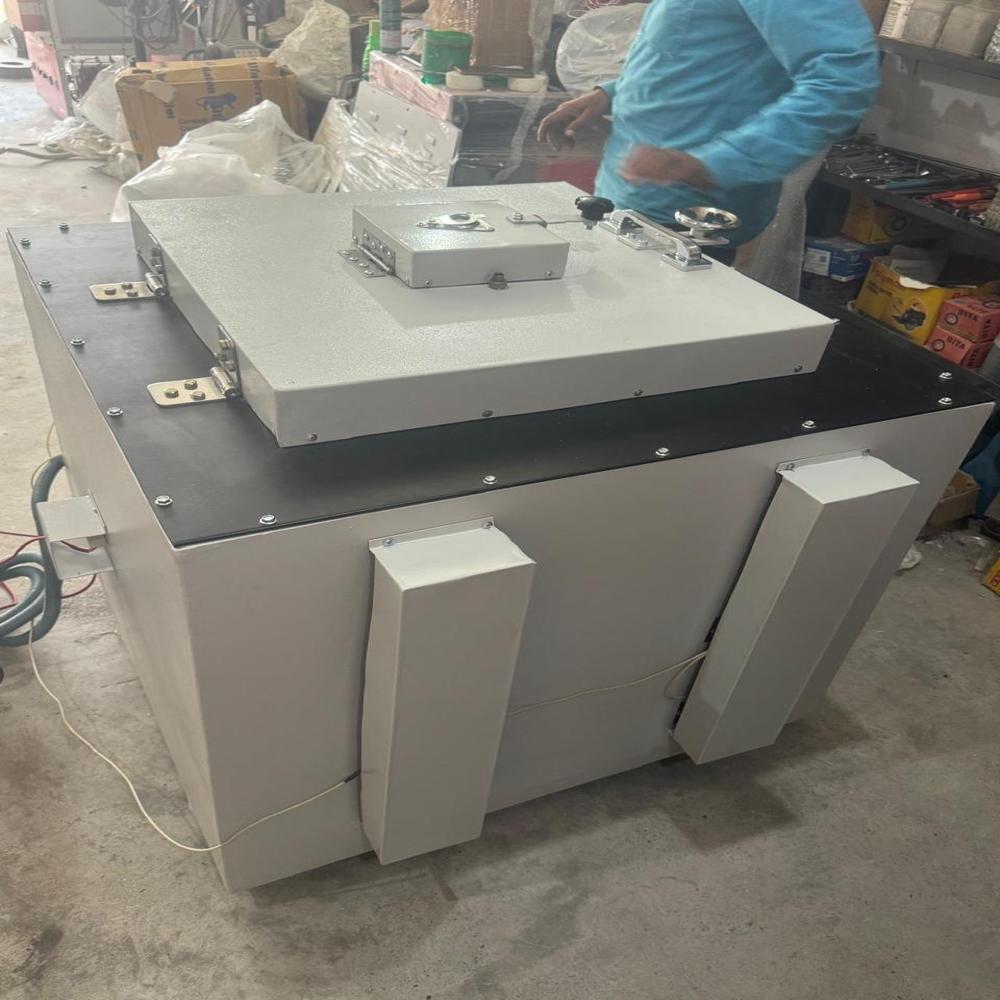

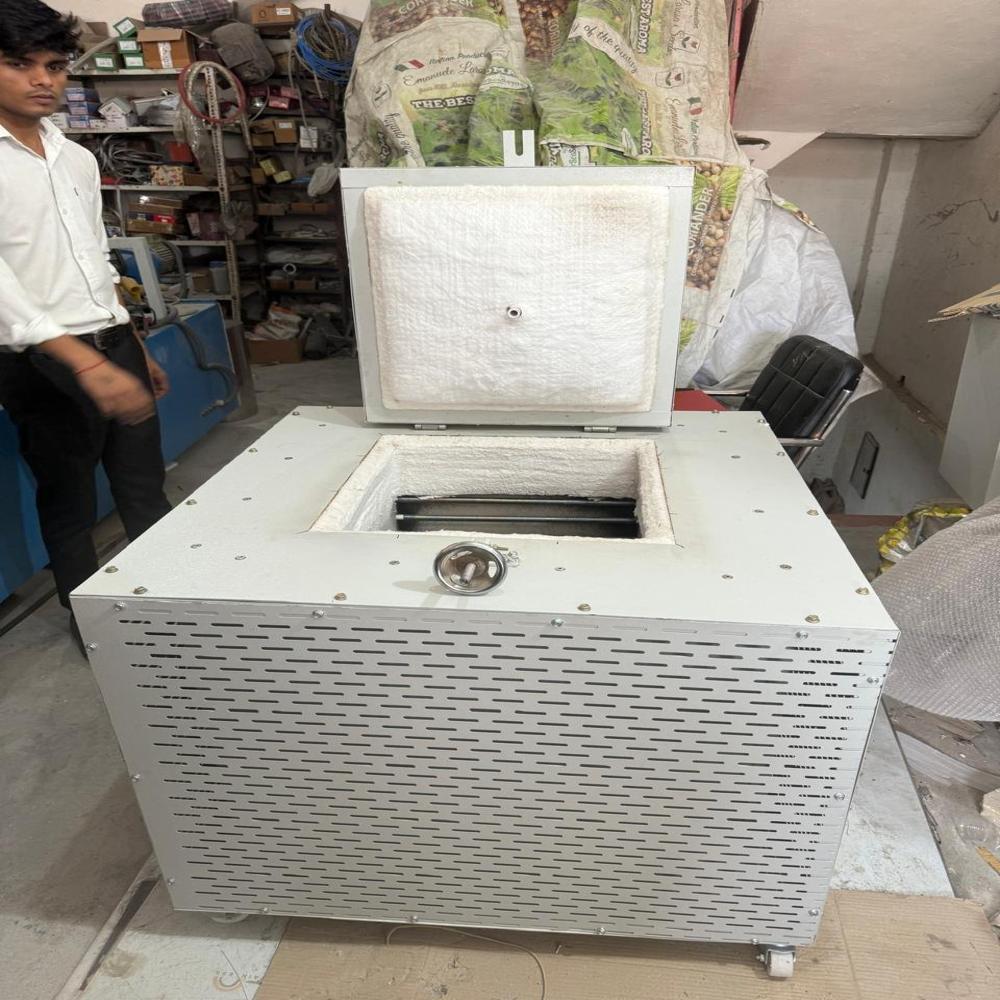

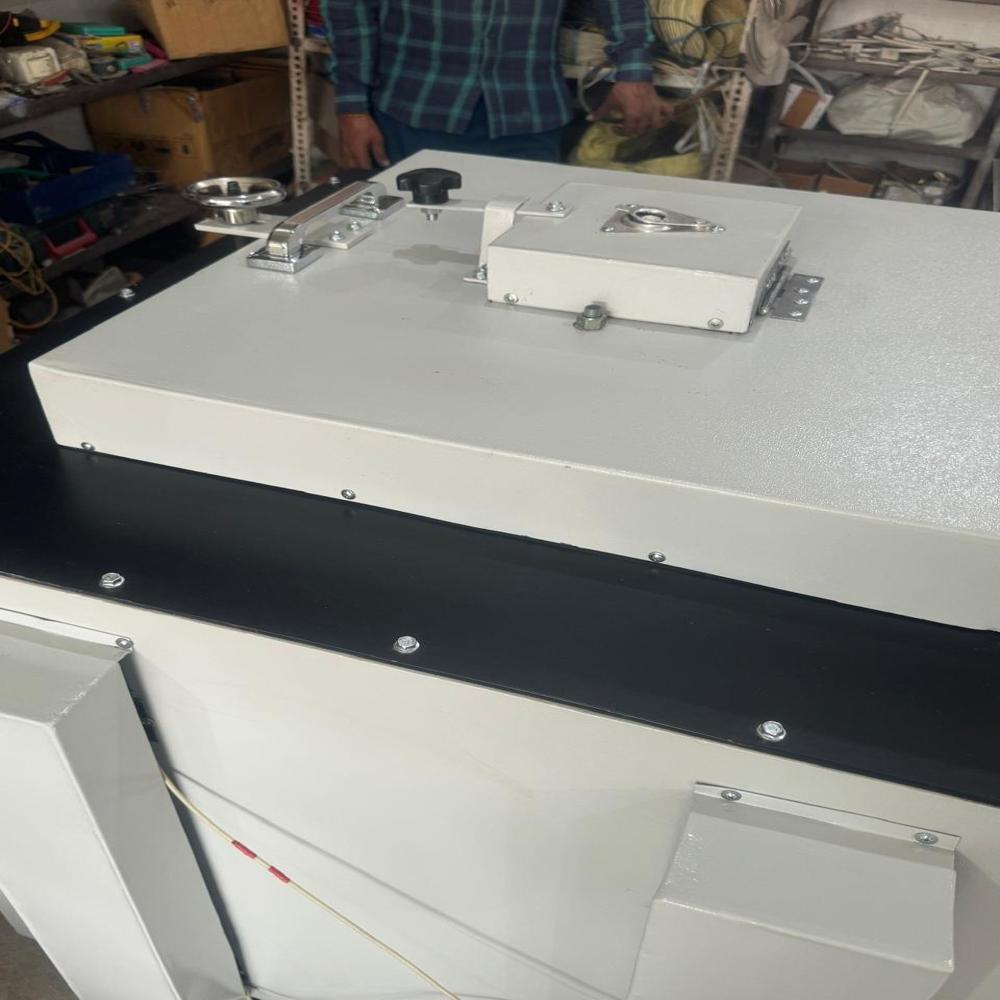

Aluminum Melting Furnace with curusibale

Product Description

MAKE: CITY (ISO 9001 2015 CERTIFIED CO.).
TECHNICAL SPECIFICATIONS:
Maximum Temp.:1400 C
Working Temp :1300C Temp. Accuracy : 1C Heating Elements: Silicon Carbide, with end connection easily replaceable.

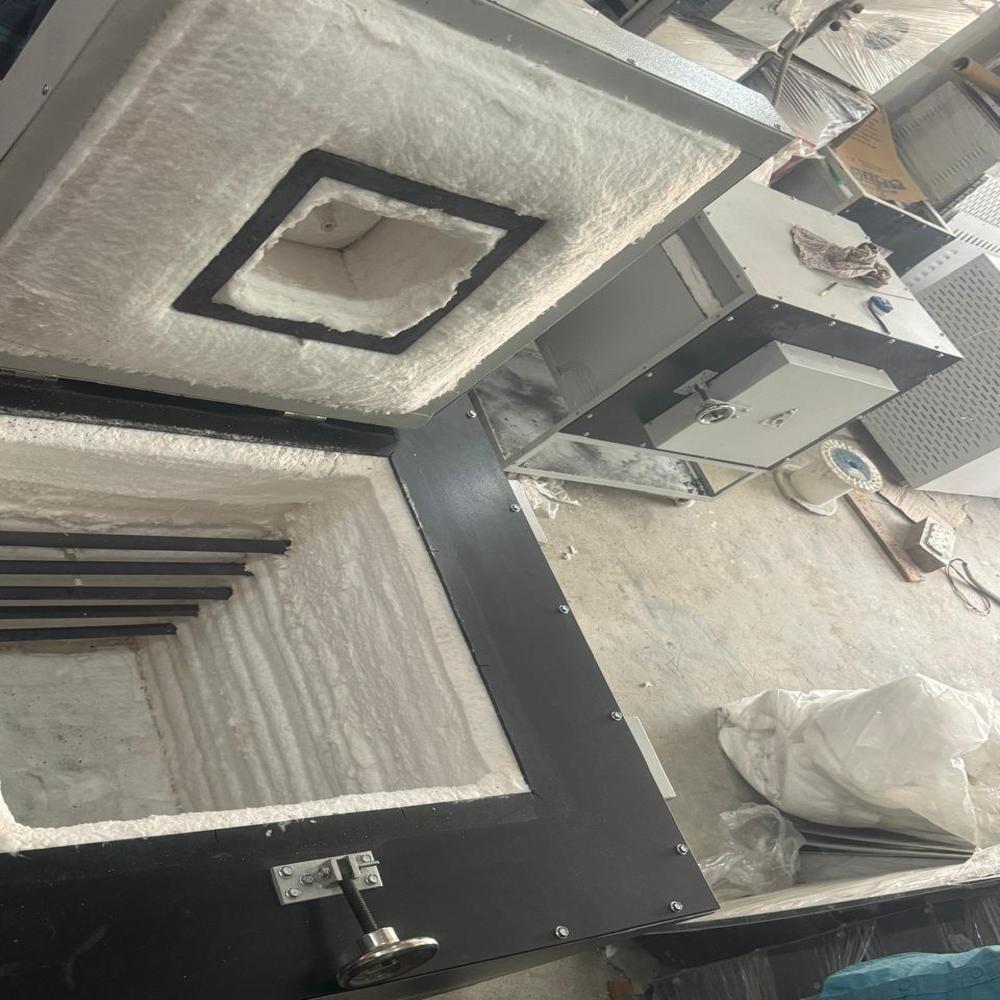

Inner Chamber:Ceramic Board with base plate of Silicon Carbide, with heating elements placed on the top.
Insulation:Ceramic Fibre of Zirconia grade
Construction:Triple walled with air insulation on the outer side For Minimal Skin Temp.
Body :Made of mild steel duly Powder Coated Door:Hinged type insulated with ceramic fibre and has a viewing cap. Power Control :( Phase Angle Thyristor )
Temp. Control :Microprocessor based PID Programmable controller with 1 prog x 16 segments (ramp / soak ). Dual display of Set & Actual Temp. with soft touch keys. With Thermocouple break protections & Cold junction compensation. CE mark to Meet EMC regulations. Sensor :Pt / Pt Rh 13%Safety :Over current and Short Circuit Protection Thermocouple break alarm. High Temp. alarm.

Power Supply :220 volts, single phase AC supply
Inner Muffle Size:
W x H x D(6 x 6 x 12)
