Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace
Heat Treatment Furnace
Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace Heat Treatment Furnace

Heat Treatment Furnace

133177.96 INR/Unit

Product Details:

X

Heat Treatment Furnace Price And Quantity

  • 133177.96 INR/Unit
  • 1 Unit

Heat Treatment Furnace Trade Information

  • 5 Unit Per Month
  • 14 Days

Product Description

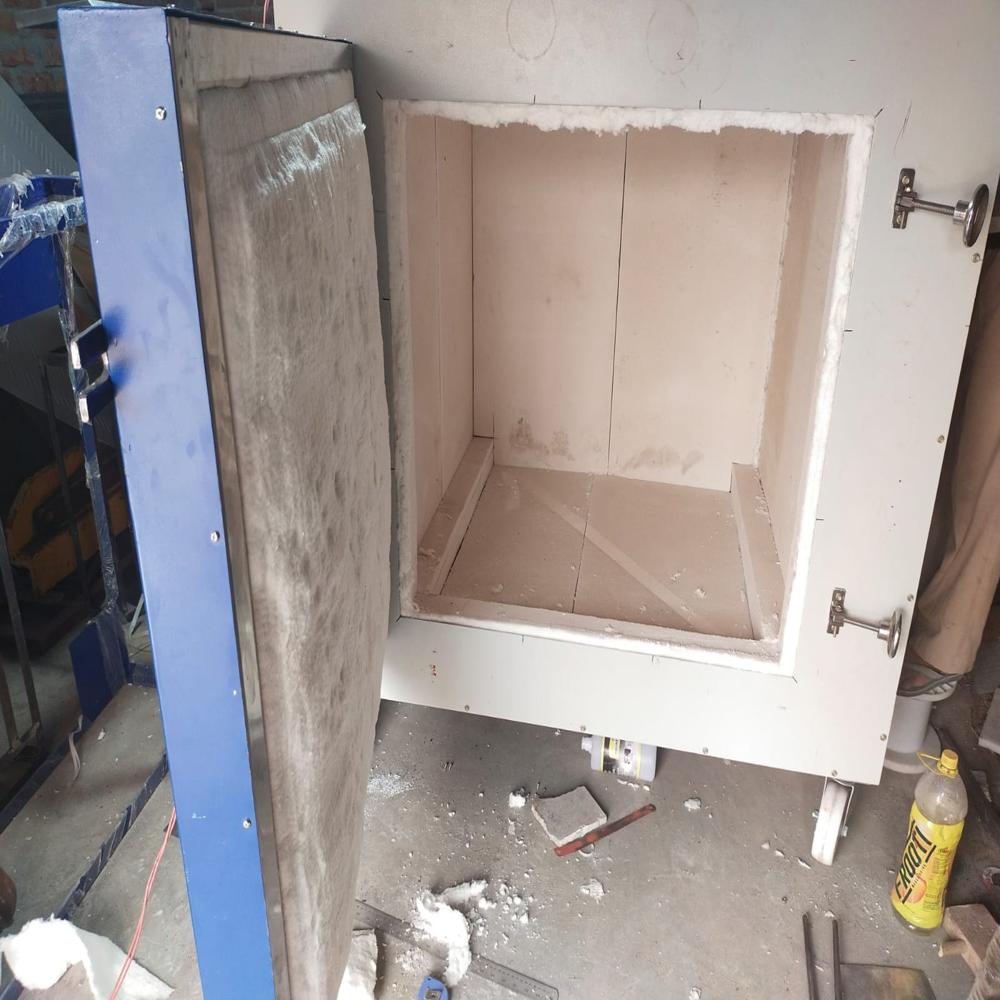

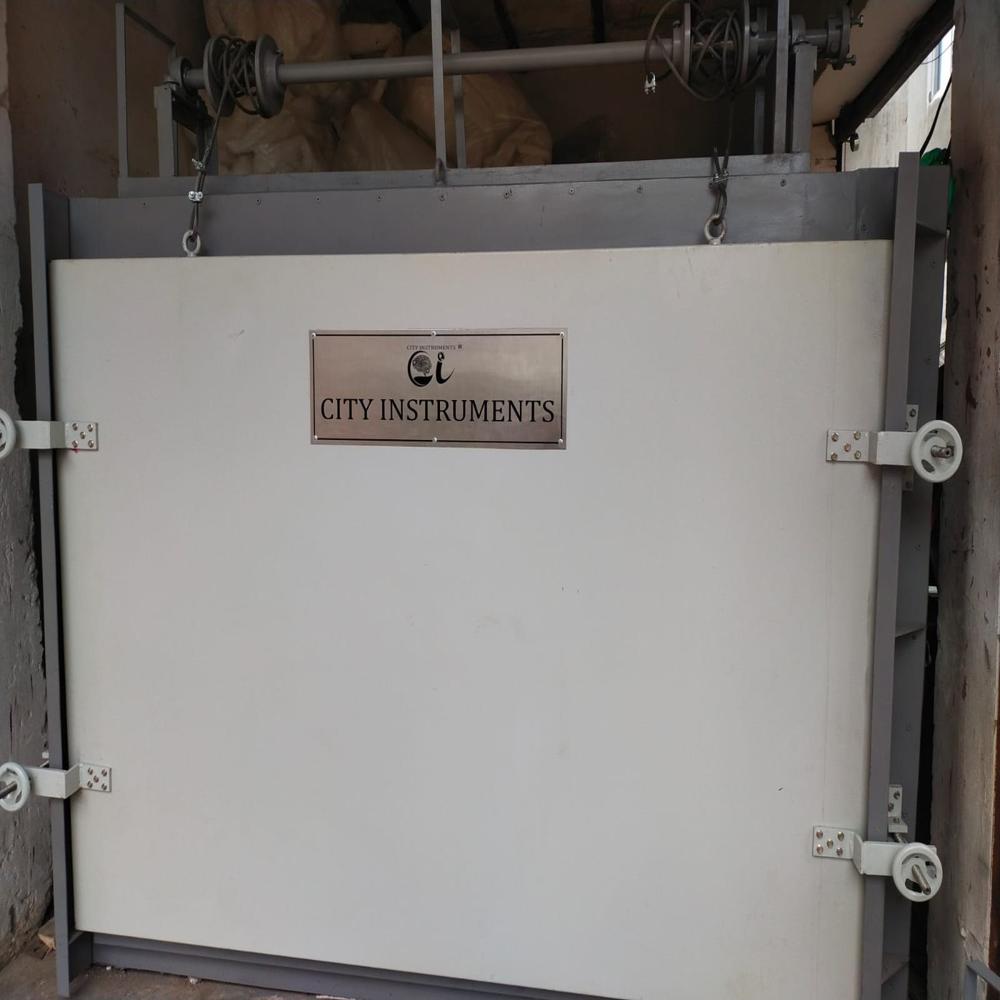

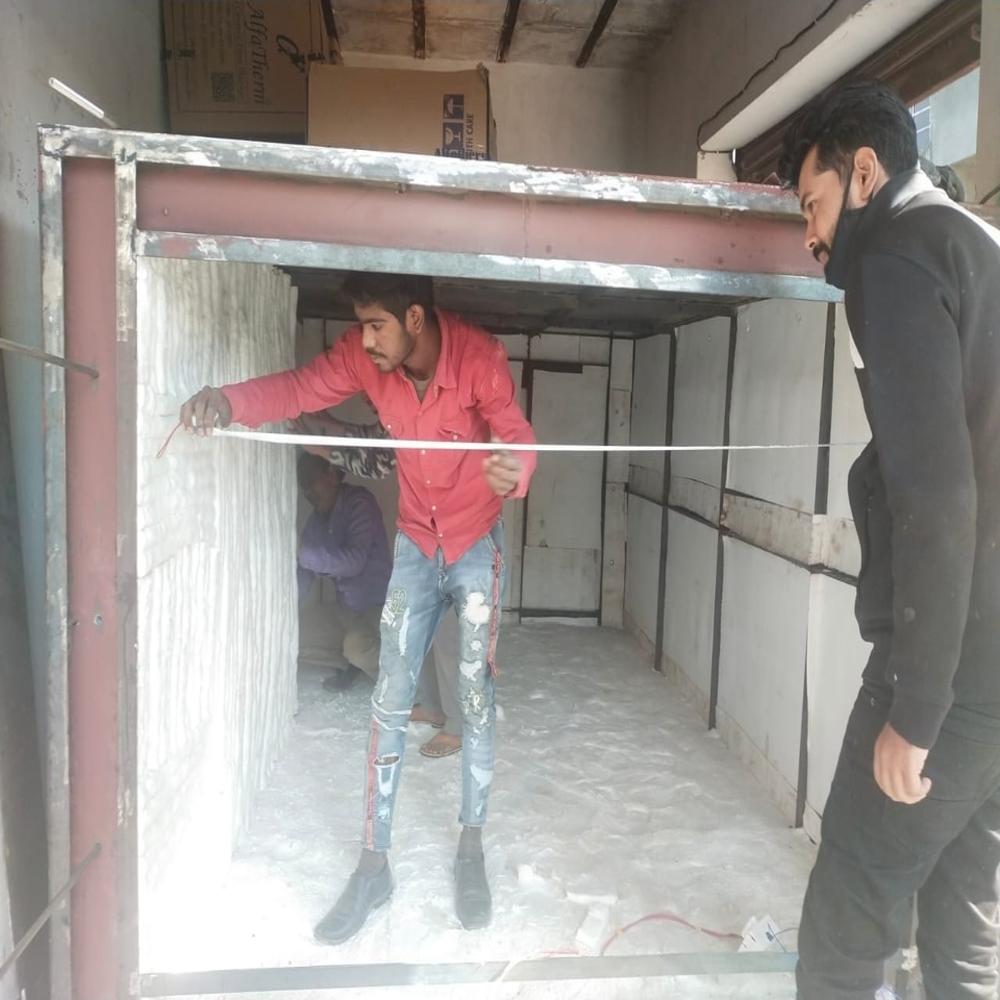

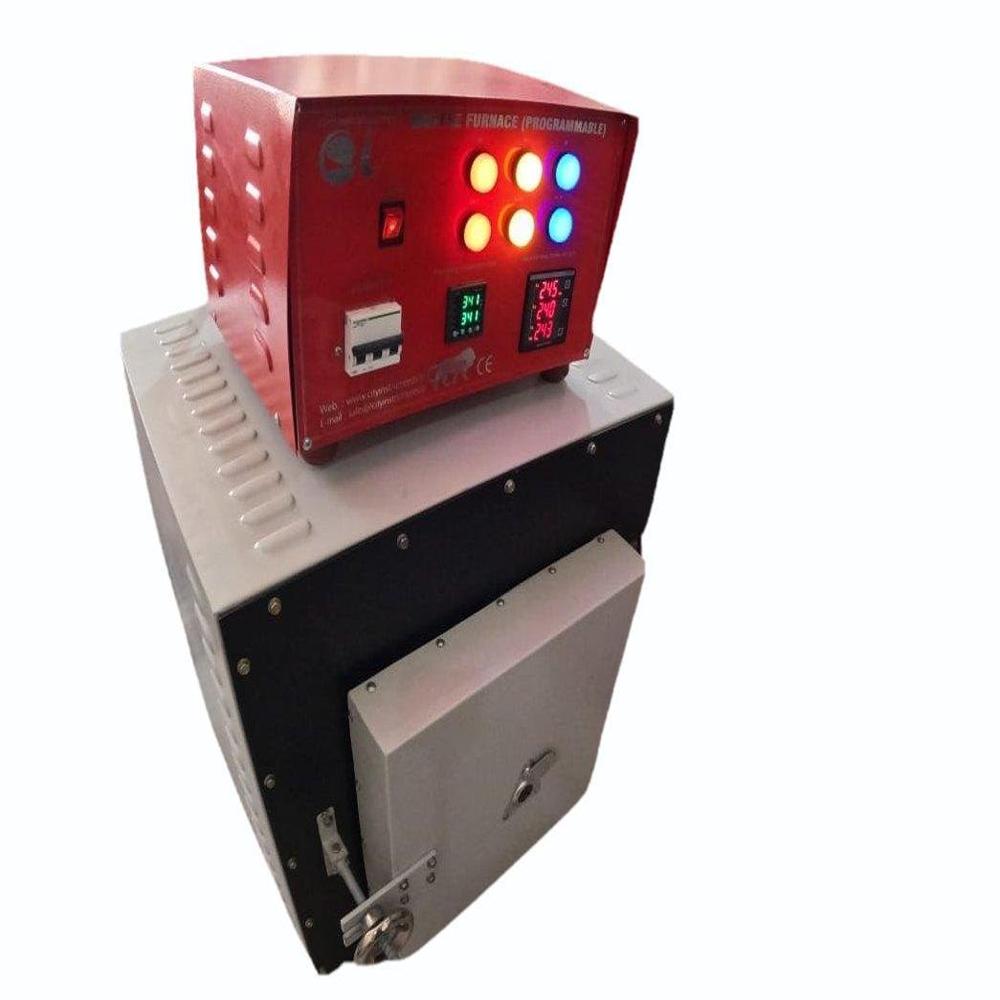

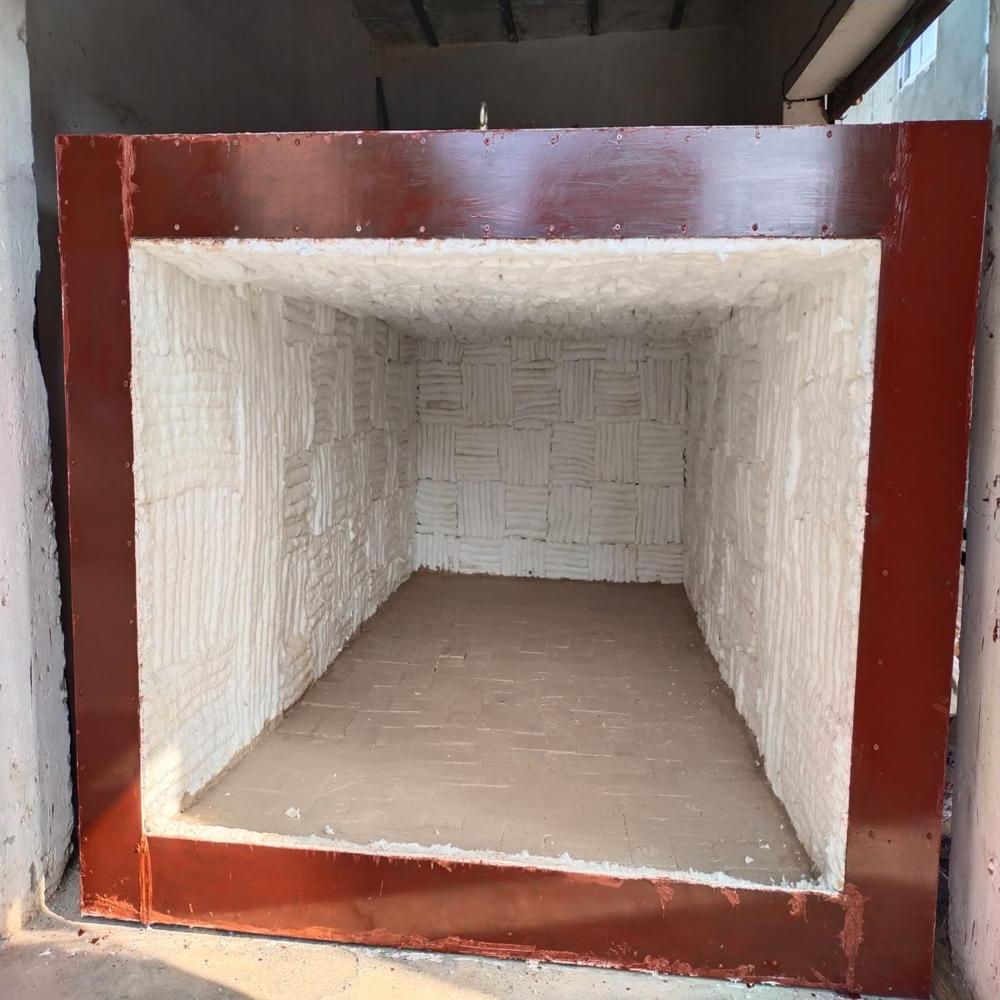

Heat treatment furnace (programmable) make: city (iso 9001 2015 certified co. ). Application :- city instruments make heat treatment furnace are highly useful for metallurgical, engineering & other purpose having temperature range up to 1000 c. Construction:- the furnace casing will be of strong (ms steel) construction reinforced with steel duly electrically welded mounted on channels. The lining consists of high-grade insulation ceramic fibre blanket having density 128kg/m3 as a backup and front will be ceramic fibre with high density of 160kg/m3 and heating elements will be fixed on the same. The body of the furnace will be painted with high heat resistant aluminium paint. Bogie:- bogie will be fabricated with 5 mm the m. S plate with adequate rolled steel sections for stiffener. Bogie is insulated as mentioned above heat resistant casting plate are provided to minimize the heat loss. Door:- door will be fabricated with 5 mm the m. S plate with adequate rolled steel members for stiffener. The sides of the door will be made up of 14mm heavy plate in order to ensure long working life. Door is insulated with ceramic fibre as mentioned above. The door will be provided with adequate capacity motor with reduction double gear box and counter weight for sideward movement. Heating:- the heating elements are made up of kanthal a1 heating elements with low surface load in order to ensure long working life. These heating elements are having higher creep & elongation strengths at elevated temperature & also better oxidation properties. Technical data :- a. Dimension & structure body : width 2500 mm x length 2800 x height 3100 mm workable dimension : width 1500 mm x length 1800 x height 2100 mm loading capacity : 6 mt max temp. : 1080 c working temp. : room temp. To 1050 c
b. Structure body: the furnace will be built with 5mm thick plate reinforced with heavy structure of ismc 100x50x100mm front steel plate will be 15mm thick plate duly connected with furnace shell with heavy gusset wherever required door : the door base plate will be of 5mm thick with 12mm side plates on all 4 sides supported with gusset inside and ismc structure outside bogie : the bogie will be made up of heavy ismc with thick castings plate fitted sides
casting plate : heat resistant casting plates are installed on all 4 sides of the furnace body door area in order to ensure no heat losses from door sides while operation c. Insulation : by high purity alumina fiver 1400 c to minimum heat lose. Three layer. D. Heating system: type of heating : strip type element type : strip type heating element surface load : 1. 98 w/cm2 no of zone : 3 zone no of heating element : 12 nos each zone 36 heating elements total element accessories : terminal rod fixing stud syndinium sheet e. Bogie : bogie motor : 5 hp motor attach with gearbox buc 500will be provided for bogie smooth movement for front door up & down movement bogie rail line : (under your scope) f. Temperature cycle system : workable temp. : room temp. To 1050 c (recommended) no. Of zone : 3 zones heating rate : as per your required cycle batch time : as per your required cycle temp. Controller : electronic digital profile automatic temp. Controller indicator upto 1200 c thermocouple : k type thermocouple will be provided having capacity upto 1200 c no. Of thermocouple : 3 nos note : proper calibiration report will be provided thyristor control : the furnace will be thyristor based control in order to ensure long heating work life. G. Power & zones : no. Of zone : 3 zone no. Of heating element : 36 nos heating element : kanthal - a1 type of heating element : strip type controlling : contractor controlled furnace heating rate : 250 kw electric supply : 380-440volts, 3 phase with neutral supply the furnace will be fully automatic temperature controlled painting : the furnace will be painted with heat resistant
