Heating Cooling Furnace

Product Description

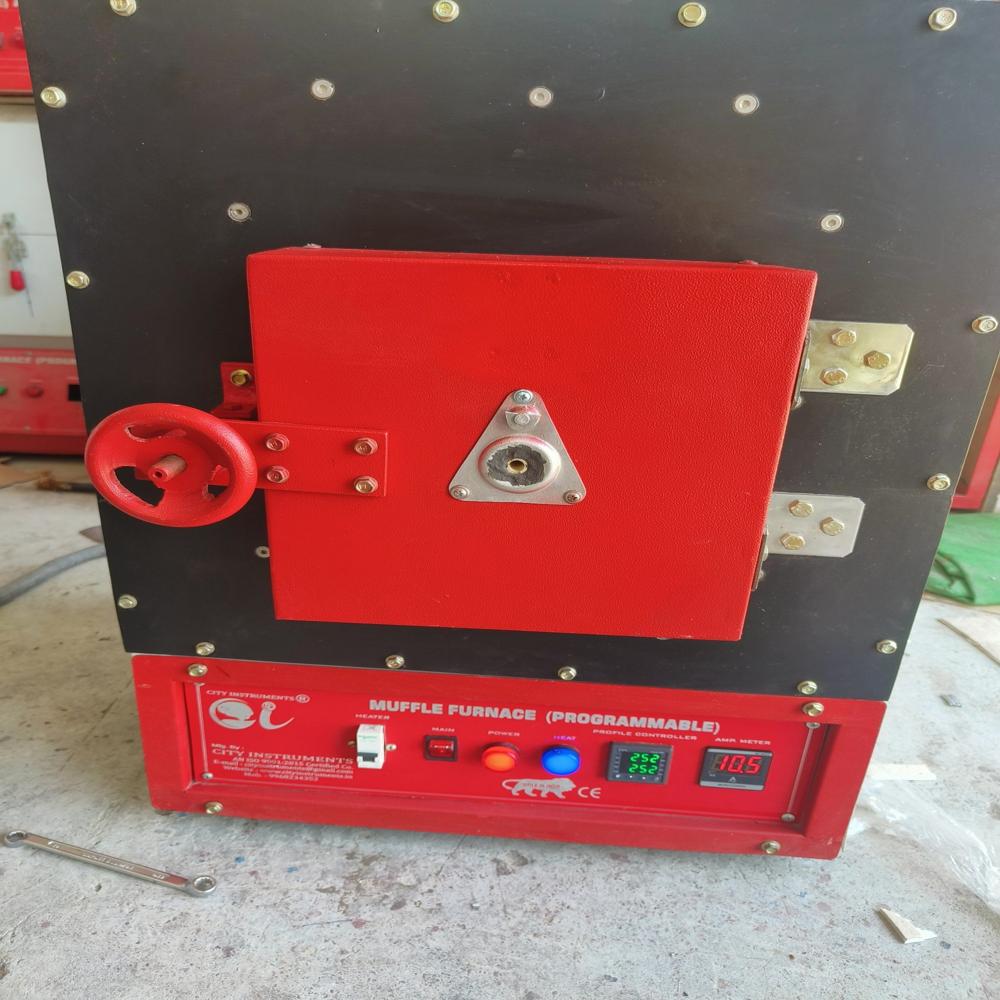

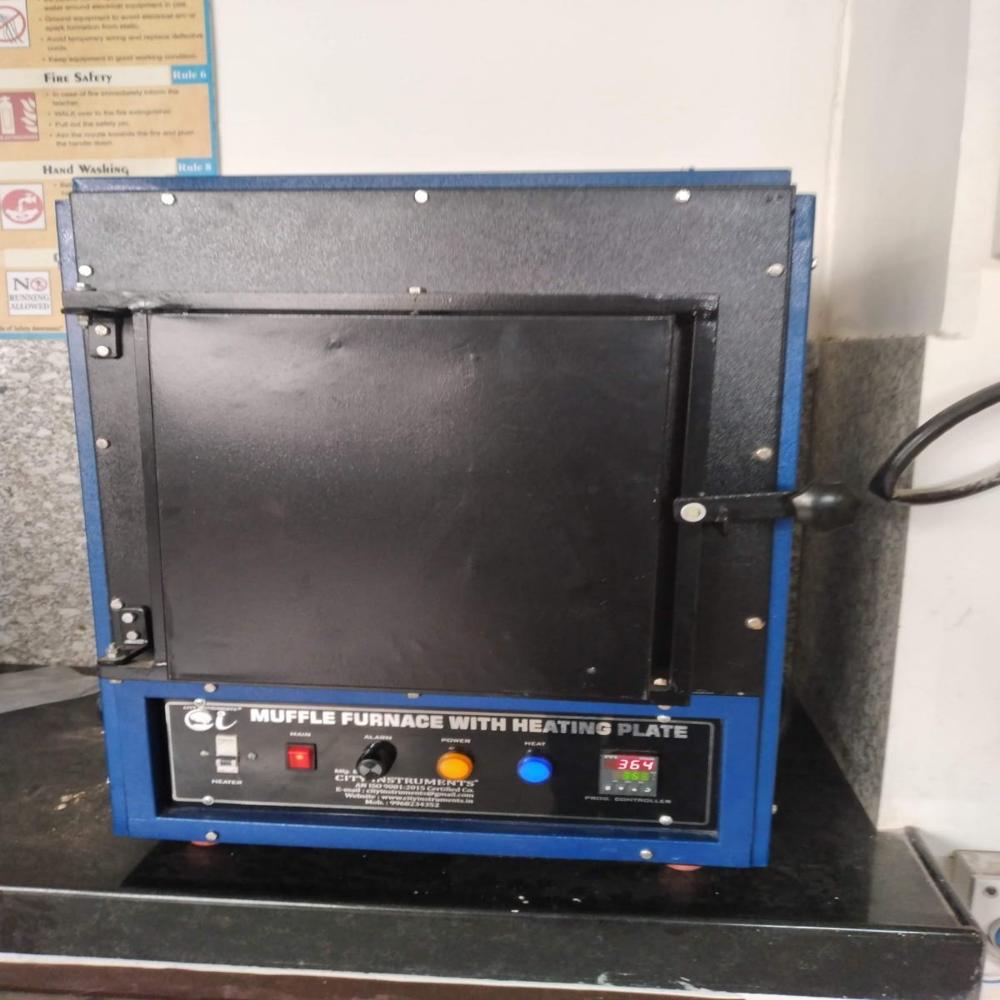

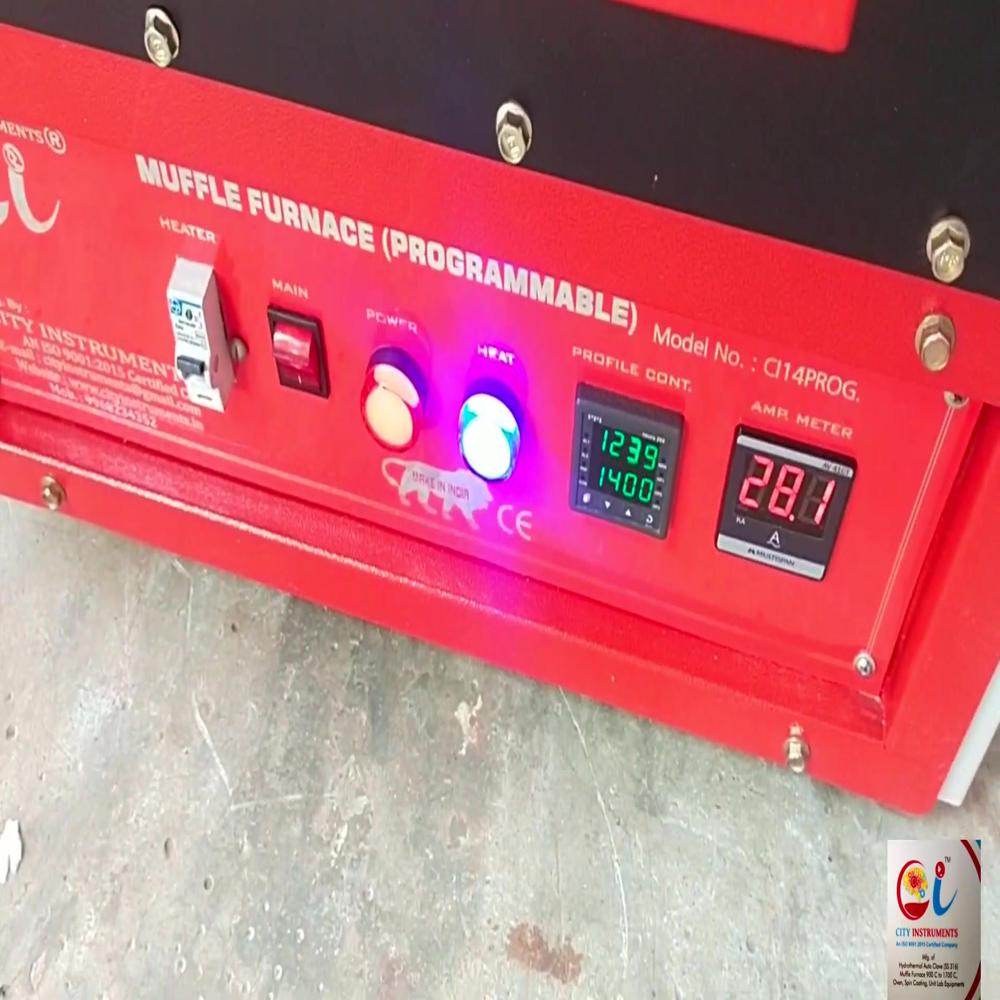

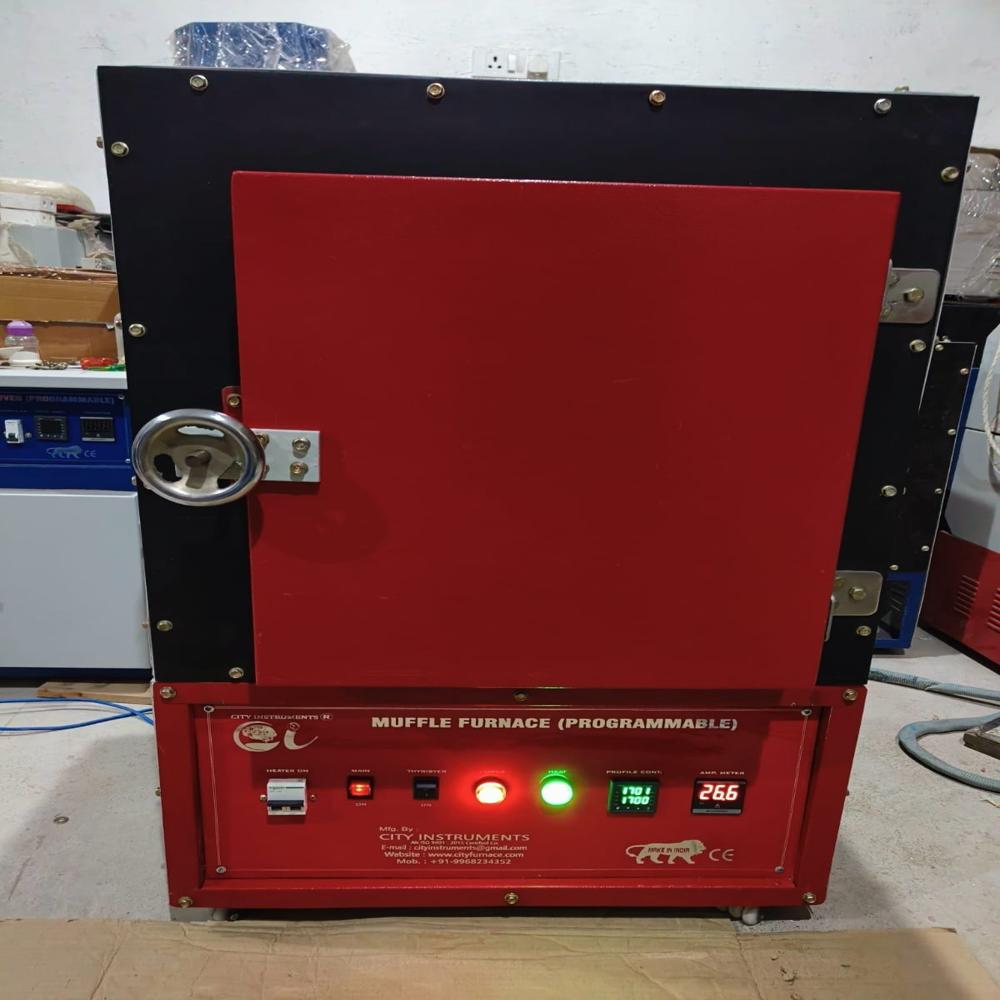

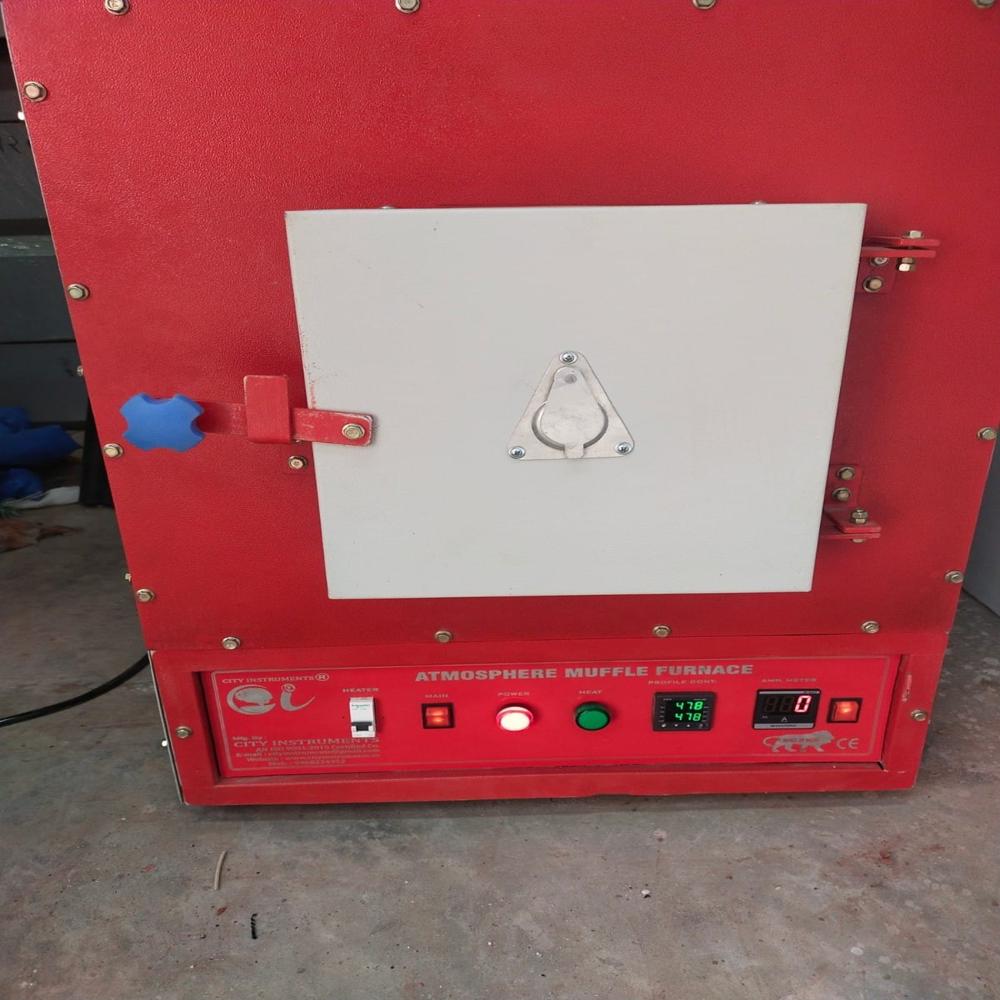

• HIGH TEMPERATURE MUFFLE FURNACEMAKE: CITY (ISO 9001 2015 CERTIFIED CO.).Maximum temperature: up to 1200??CWorking Temp. Range : up to 1100C.Temp. Accuracy: 1C.Light weight with ceramic Fibre wool insulation (instead of Brickinsulation). The outer casing is made of double walled thickP.C.R.C. sheet, finished with attractive powder coating.Elements are made of KANTHAL A-1 wire in coil form placed inthe ribs of the tiles to have a free radiating heating. Backed byZirconia cerewool insulation, which avoids loss of energy, thisarrangement also assures the most uniform distribution of heat.The weight & size of furnace is of one quarter and 30%respectively as compare to Bricks Furnace. A viewing cap is alsoprovided on the door.Temperature of the furnace is controlled by microprocessorbased Programmable controller (1x14 segment,dwell, hold, ramp, timer all with Also provide calibrationreport of controller by NRL lab if requirement by costumer, withsoft touch keypad and dual display of process & settemperature. The overshoot & undershoot of temp. Variation isdrastically reduced compared to normal ON / OFF typecontrolledfurnace.To work on 220/230 Volts A. C. Single Phase supply.INNER MUFFLE SIZE:W x D x H150mm x 150mm x 300mm(6x 6x12) Inch
